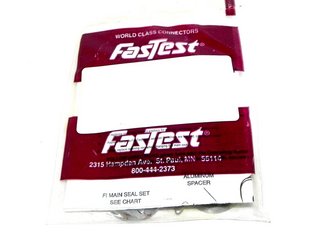

Custom main seal set for use with an FIM2 base connector.
Seal, washers and spacer sized to seal a24.5mm ID with 13mm of available sealing area

Bulk main seal kit as described for the FES2P2860B main seal set
Includes five (5) main seals &retaining rings only for five (5) seal changes

Connecteur de base FI3
Ø 1,57 inches (39,9 mm)
Corps Aluminium et acier inoxydable
Orifice d'entrée du fluide: 1/8" NPT
Orifice de pilotage : 1/8" NPT

FI Seal Kit 0.472 to 0.551in (11.99-14mm) sealing range, Neoprene material.

FIM1 base connector with ICON
Main seal set sold separately.
Aluminum andstainless-steel construction materials.
1/8" BSPP media inlet port
1/8" BSPP pilot port

FI Seal Kit 0.472 to 0.551in (11.99-14mm) sealing range, Neoprene material.

Straight female M8 to flying leads (6-wire 2m cable)

Programming Tool
Quickly program / calibrate ICON™ Sealing Connection Tools
Eliminate the need for PLC programming
LED connection status visual feedback
Powered from wall adapter (included) or from a PLC (24VDC)

Fastest MET Serie
Manual twist sealing connection to male 1 BSPP (G) thread.
Termination : Female 1 NPT
Pressure Rating: up to 4000 psi (275,6 bar)
Stainless Steel construction with Buna-N seal.
Main seal : Urethan

FasTest 60 series
sleeve actuated connector. Custom design to grip a G1-1/4" male thread fitting andseal.
Body size 7, stainless steel construction with Nitrile and seal materials.
G3/4" media inlet port.
Rated for use in a 2.5 bar, cold/hot water media test application.

FI Rebuild Kit including 2 O-rings
Neoprene material.

Fastest JNL Serie
Manual lever actuated internal grip
for Imperial External tubes 0.875 +/- .010
Termination : Female 1/4 NPT
Pressure Rating: 10 mtorr to 1000 psi (68.9 bar)
Materials of Construction : Anodized Aluminium, Stainless Steel and Acetal (POM)

Fastest JNL Série
Connexion par levier manuel
pour tube droit diamètre intérieur 0.875 inch (22.2) +0.10 in/-0.010 in (+/-0.25mm)
Connectique arrière : Femelle 1/8 NPT
Pression de travail jusqu'à 1000 psi (68.9 bar)

FasTest 70 series, sleeve actuated connector.
Custom design to grip over a 9.1mm OD flareexpansion on a nominal 1/4" OD copper tube and seal.
Body size 2, stainless steel construction withNitrile seal materials.
1/8" BSPP media inlet port.
Application 45 bar/Nitrogen proof test & 25bar/Helium sniff test.

FasTest 70 series, sleeve actuated connector.
Custom design to grip over a 16.6mm OD flareexpansion on a nominal 1/2" OD copper tube and seal.
Body size 4, stainless steel construction withNitrile seal materials.
3/8" BSPP media inlet port.
Application 45 bar/Nitrogen proof test & 25bar/Helium sniff test.

Replacement pack of 5 main seals for 70P2943A

Replacement pack of 5 main seals for 70P2943B

Fastest MIT Serie
Manual twist sealing connection to female 1/2'' BSPP (G) thread.
Termination : Style Plug
Pressure Rating: up to 10,000 psi (689 bar)
Stainless Steel construction
Main seal : Urethane

Fastest MIT Serie
Manual twist sealing connection to female 3/4'' BSPP (G) thread.
Termination : 3/4'' BSPP
Pressure Rating: up to 10,000 psi (689 bar)
Stainless Steel construction
Main seal : Urethane

Bulk seal kit (including 5 main seals) for Fatest connector MIT (1/2" NPT)
Material : Urethane
