Revolutionary compressed air filtration

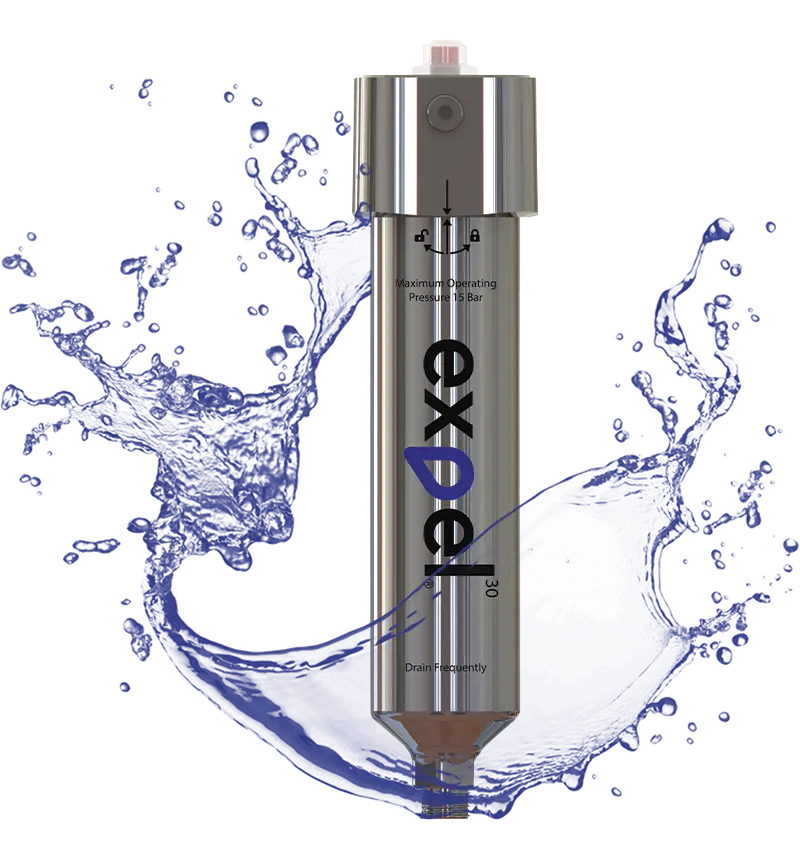

The Expel compressed air filter
Expel revolutionizes compressed air filtration with its first cleanable and reusable filter. Thanks to its fluid dynamics-based technology, no parts need to be replaced.
Discover our range of Expel units capable of operating with :
- Flow rates up to 10 m3/h..
- Ports from de 1/4'' to 2''.
- A working pressure of 1 to 15 bars.
Benefit from unmatched performance and efficiency, which do not decrease over time and provide cost savings on replacements.
Everything you need to know about original AVG
A revolutionary air filtration technology

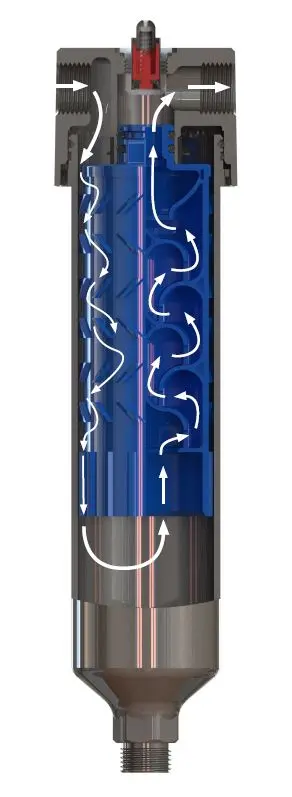

95% of the separation occurs when...

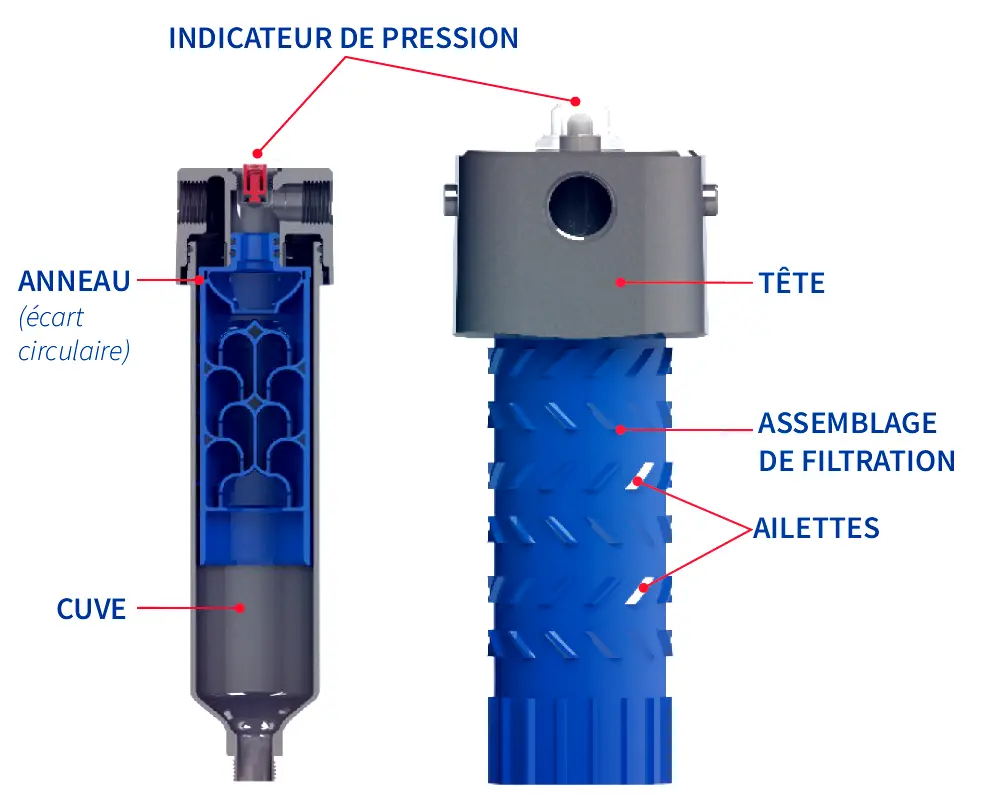

Compressed air enters the unit and is directed downward between the tank and the outer surface of the internal filter element.
The outside of the internal element features specially designed angled fins to manipulate the direction of the air. These fins create multiple vortices that propel contaminants toward the walls of the tank.
At the base of the internal element, the fins are not angled but vertical and act as brakes for the air.
At this stage, 95% of the contaminants present in the air are removed and fall to the bottom of the tank, where they are automatically discharged by an automatic drain system.
5% of the separation occurs when...

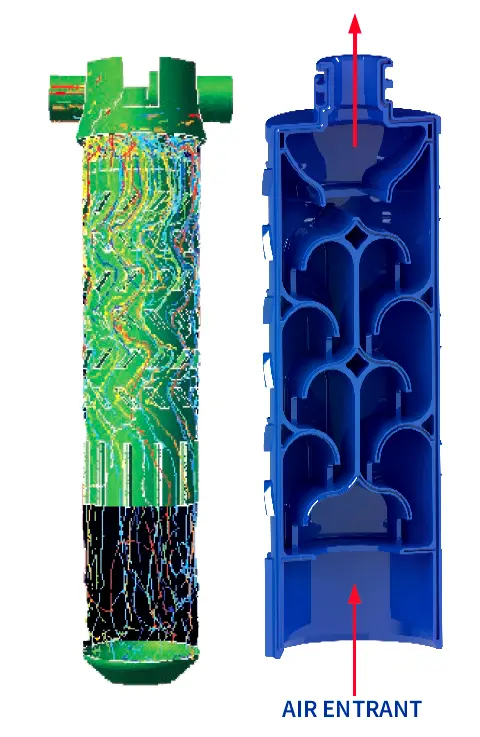

The air is pushed upward through the vertical unit bodies in the shape of an umbrella (UVB).
Water, oil emulsions, and remaining particles merge and form droplets. Gravity takes over, and the droplets fall to the base of the unit to be automatically discharged by a drain valve.

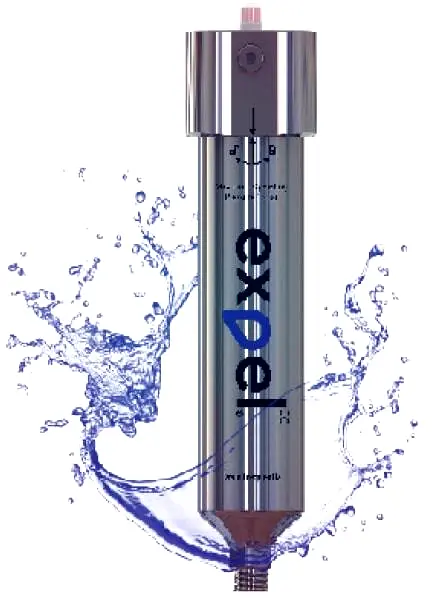

A unique Expel technology
Revolutionize your compressed air filtration with Expel: an innovative approach designed around fluid dynamics. Thanks to this clever design, no filter element replacement is required, ensuring 99.9999% performance.
Fully protect your pneumatic equipment down to 1 micron, against liquid water, oil emulsions, and solid particles. Expel concentrates this protection into a single unit.
One Expel filter equals the air quality typically provided by up to three conventional compressed air filters.
Efficiency
|
99,9999% |
Contaminant removal
|
Liquid waterOil emulsionParticles down to 1 micron |
Long-term performance
|
Constant |
Replacement frequency
|
None
|
Pressure drop
|
0,1 bar |
