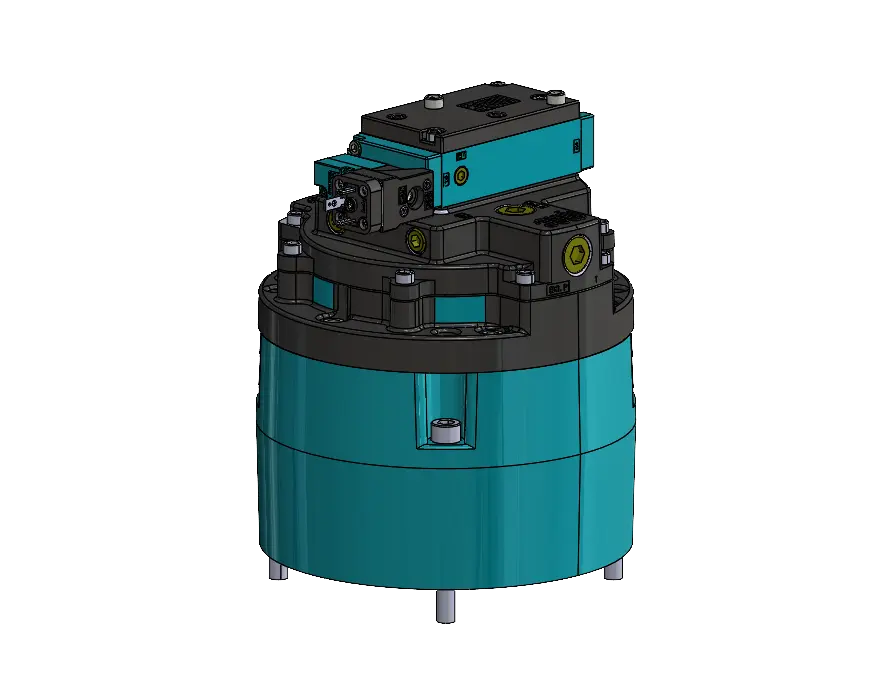

PV12 series
Discover the PV12 series: a feat of innovation by MAC Valves! This range of solenoid valves stands out as the ultimate benchmark, combining unmatched efficiency and durability in the market.
The PV12 series is designed to meet a wide range of demands. With a variety of seal materials, including Viton® and exclusive formulations, it ensures optimal sealing, even in the most humid environments.
Adaptable to your specific needs, this series can be operated by pneumatic or electro-pneumatic systems, providing total flexibility.
Its balanced design between the spool and the pilot ensures stability against pressure variations, delivering reliable performance under all conditions.
With fast and precise response times, the PV12 series delivers efficient pulses, ensuring optimal productivity in every operation.
Discover our high-performance solution, combining high flow, extended durability, and minimal leakage. Easy to install without piping modifications, this system enhances reliability even in demanding environments...

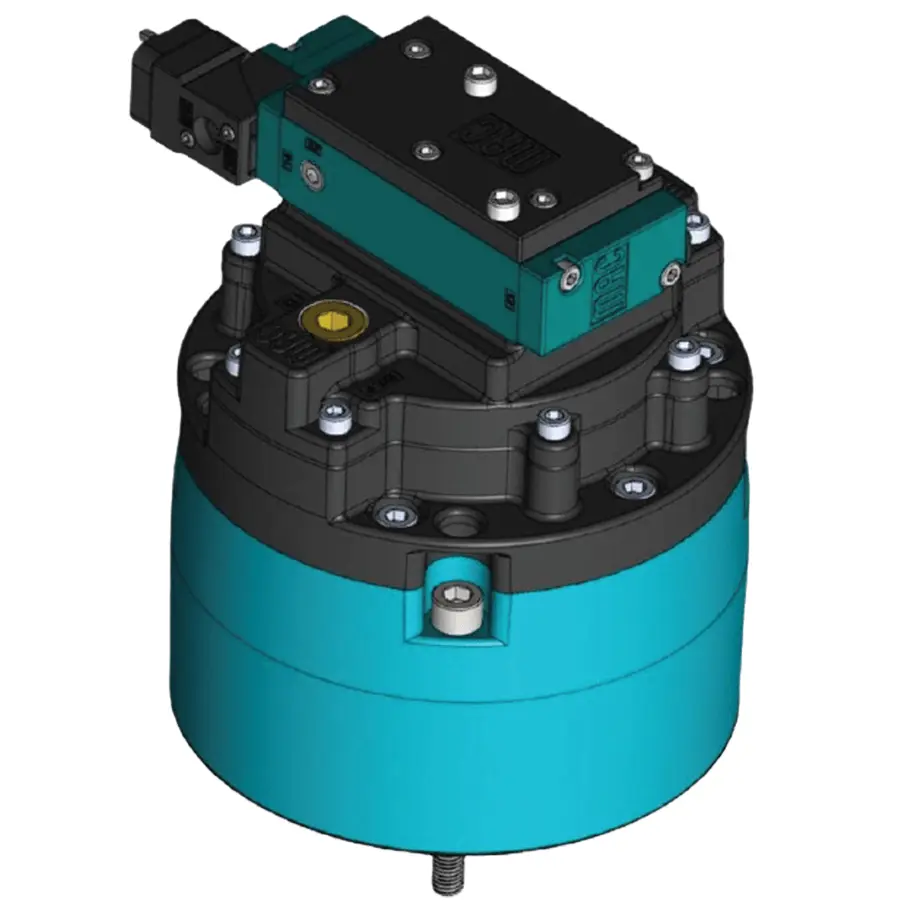

Technical features of the PV10 series :
| Flow | Flow rate | Temperature Viton | Operating pressure |
| 128,7 kw | 175cv / 175 000 nl/min | -29°C - 110°C | 2,75 - 8,27 bar |

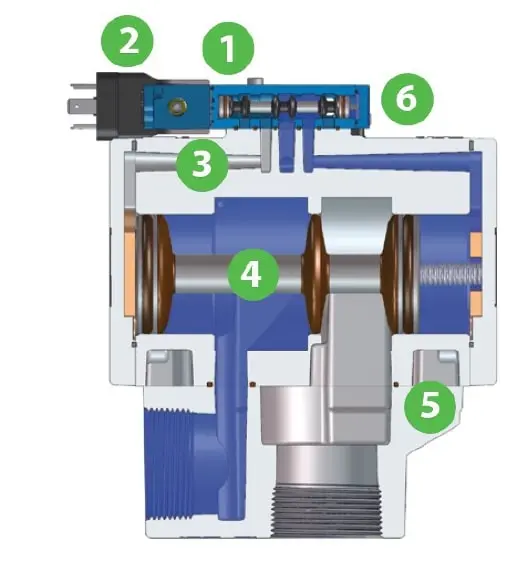

Technical diagram :
-
4-way pilot (Maximized translational forces).
- MAC Valves D-seal technology - Isolated coil (Extended lifespan)
- Plunger-pulling coil (Consistent response times)
- Spool with vulcanized seals (Optimized limited friction)
- Adapter plate (Direct replacement for existing bases)
- Manual command
ATEX certification
MAC Valves expands its range of explosion-proof products with the launch of ATEX-certified pulse valves..
All ATEX-certified pulse valves will be equipped with a new ATEX-certified D coil, which will replace the standard D coil.
Which series are affected?

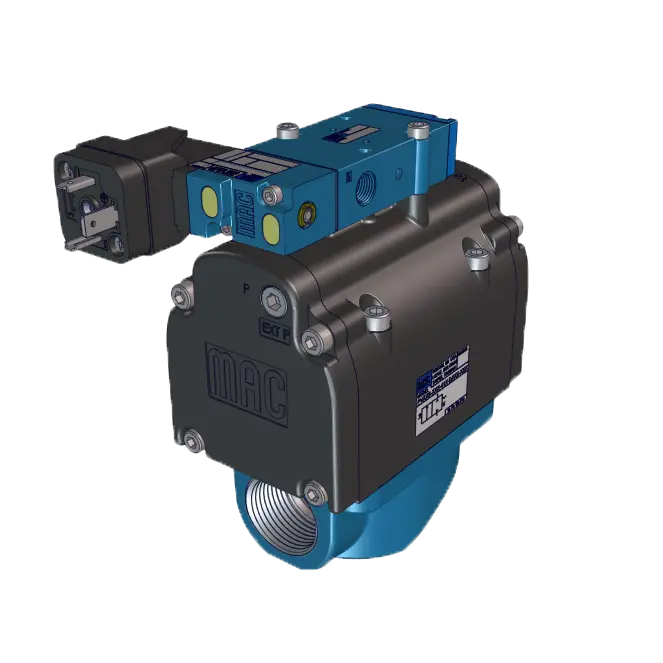

PV03 with 41P pilot valves.

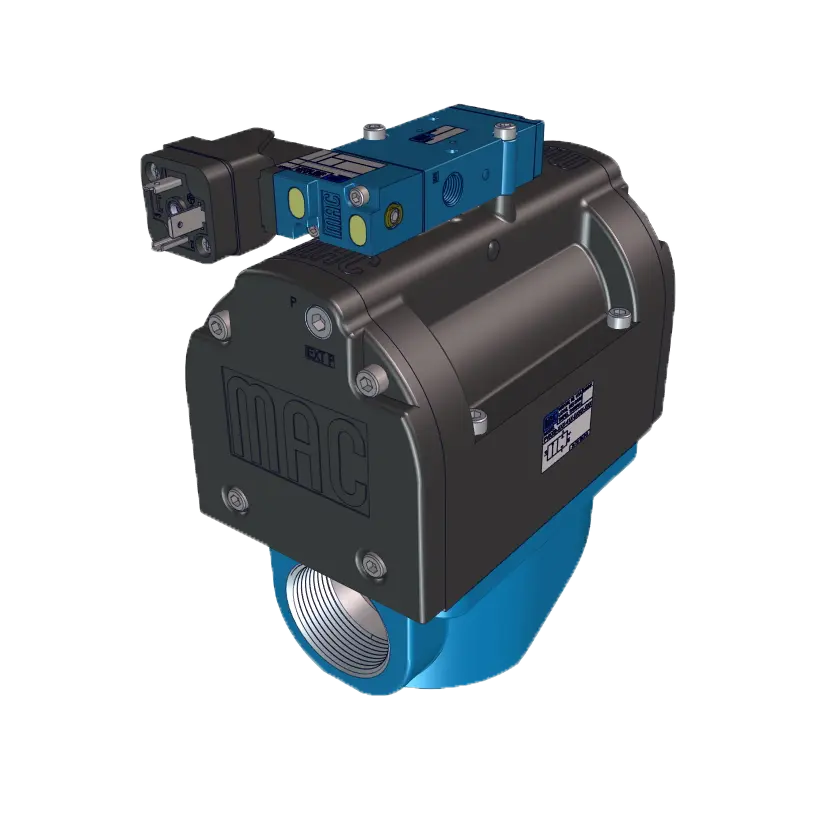

PV06 with 41P pilot valves.

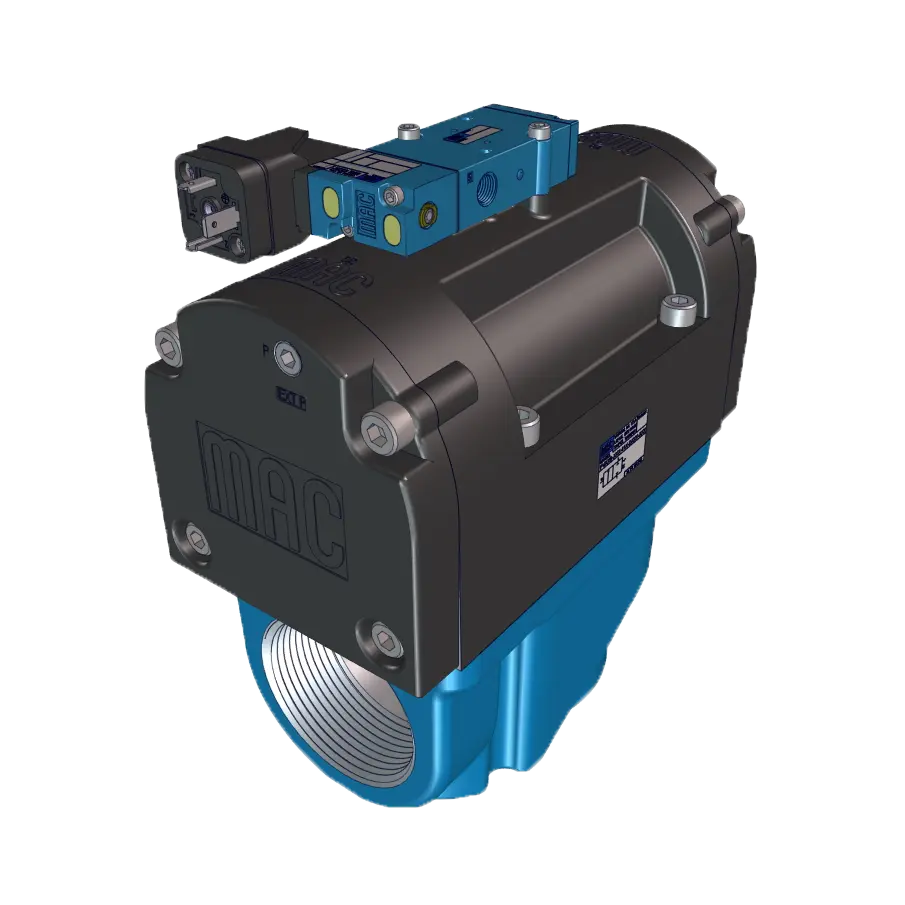

PV09 with 93P pilot valves.
The PV12 series will be available soon.
Learn more about ATEX certification

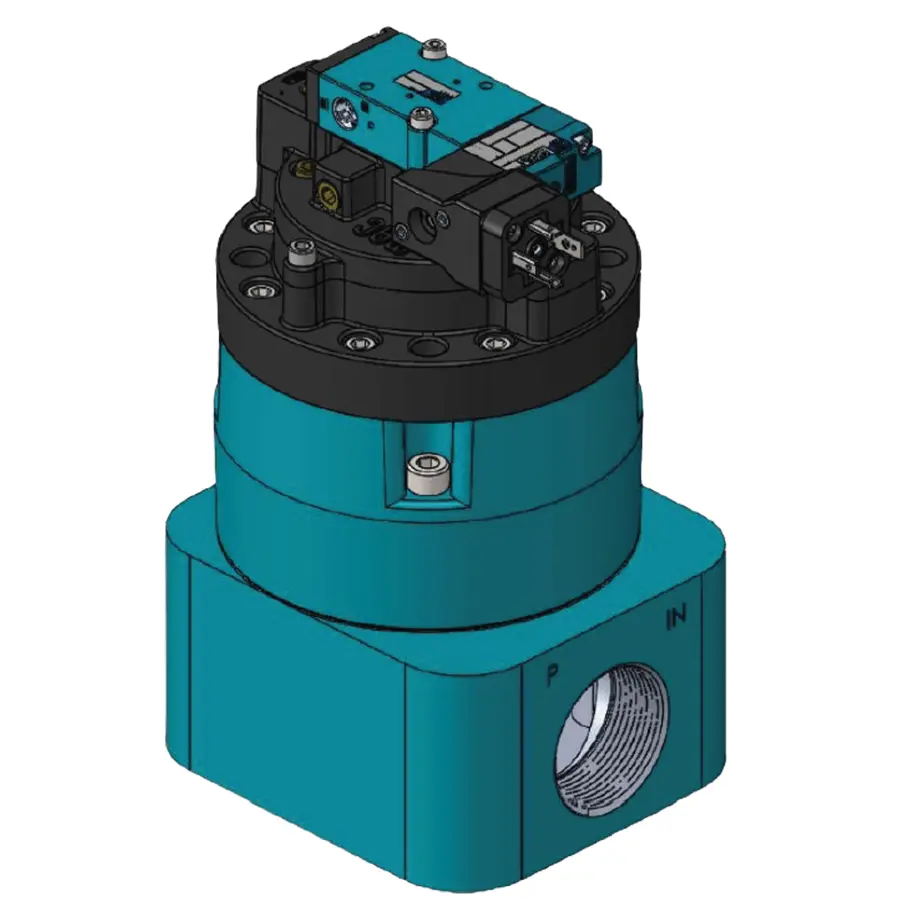

Explore our other PV series
