Light Sensor

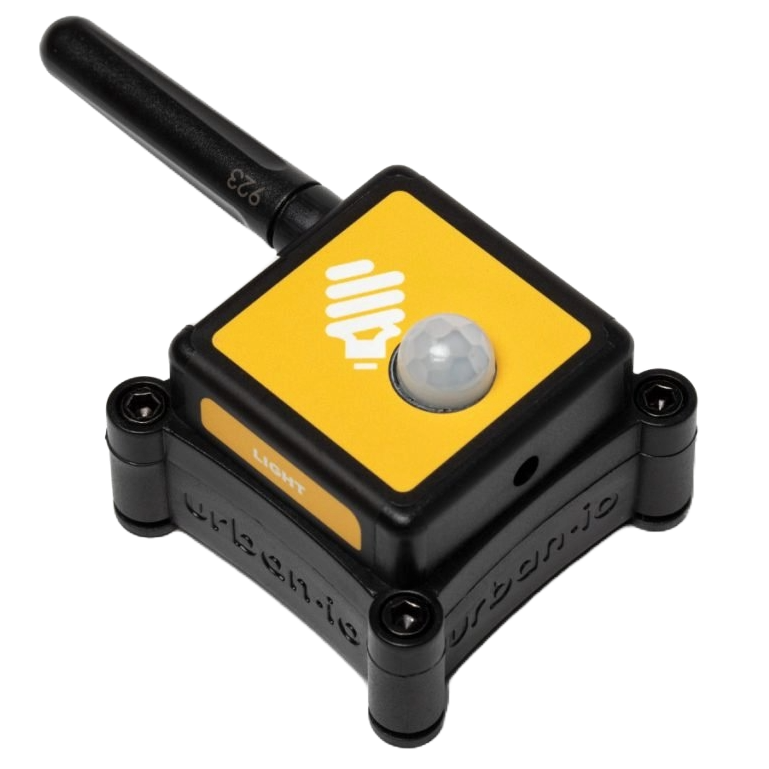

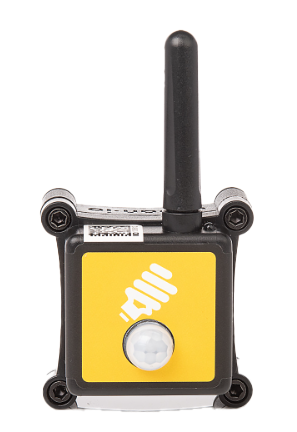

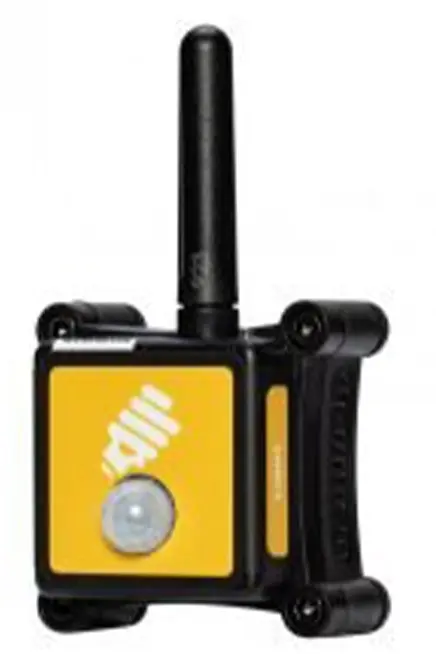

The Urban.io IoT Light Sensor detects and reports the intensity of light in lux
within indoor environments.
This sensor uses a photoresistor to detect the intensity of light around the device.
The sensor returns a value between 10 and 1000 lux making it suitable for
detection of light levels within indoor environments.
NOTE : this sensor is not suitable for outdoor light level measurement beyond
1000 lux.
his product is designed for usage with an Urban.io IoT Gateway. In ideal conditions with correct orientation of sensors and gateway antennas the following ranges can be achieved.
- Up to 5km line-of-sight where there are no obstructions between the gateway and the sensor and they are placed on the same horizontal plane.
- 500m non-line-of-sight in an enclosed space where there are one or more obstructions (objects, walls, buildings) between the gateway and the sensor and it is placed on the same horizontal plane.
This product is designed for application in normal indoor and certain outdoor environments. The gateway housing is IP65 rated and as such is designed to be water and dust resistant as well as generally resistant to direct sunlight. However the 240v Power Adapter is not rated for outdoor usage.
Urban.io proactively supports the interfacing of IoT sensor data with all industry leading Asset Management, Field Force and Work Management, Data Analytics and Machine Learning Platforms. We provide the following Public APIs as well as pre-built API Adapters for the following Enterprise IoT Systems :
- API publics : MQTT, Rest Web Services
- API adaptés : AWS IoT Core, IBM Watson IoT, Azure IoT Hub
Optimize building
performance
Cloud reporting platform
IoT API
Email/SMS alerts
Light Sensor features:
General Sensor Features
Gateway to sensor network range
500m indoor
5km outdoor
Operating Temperature
-40°C to 85°C
Power Supply
3.0 V CR2477 coin cell battery (replaceable
Battery life
2 years under normal operation
Reading frequency
1 Sample each 10 minute interval
Data transmission frequency
10 minute interval
Primary Sensing Element
Current is measured on a photoresistor
to determine the light intensity
Secondary Sensing Elements
Fault detection
(loss of sensing element)
IoT network connectivity
(Signal to Noise levels “SNR”)
IoT device battery Level
(% of remaining battery level)
Technical specifications :
Maximum resolution over measured electrical range | Measurement range | Wavelength detection range | Detection angle | Calibration / Drift | Accuracy | Temperature range (limited by battery) | Enclosure rating |
4 095 detectable points - calculated to lx 10 à 1000 | 10 to 1000 lux | 500 nm to 700 nm | +/- 25° | None | +/- 3% to 25°C | -20°C to 85°C | IP67 |
Power specifications :
Supply Voltage | Current consumption — sleep mode | Current consumption — sensor active sampling mode | Current consumption — radio RX mode | Current consumption — radio TX mode (max) |
2,0 - 3,4 VDC | 6 uA | 0 - 1,500 uA 25 for 0,1 seconds | 25 mA for 0,5 seconds | 100 mA for 0,5 seconds |
915-925 MHz
Suitable for South East Asia, Australia, North/South America.
863-870 MHz
Suitable for Africa, Middle East, Europe.
779-787 MHz
Suitable for China.

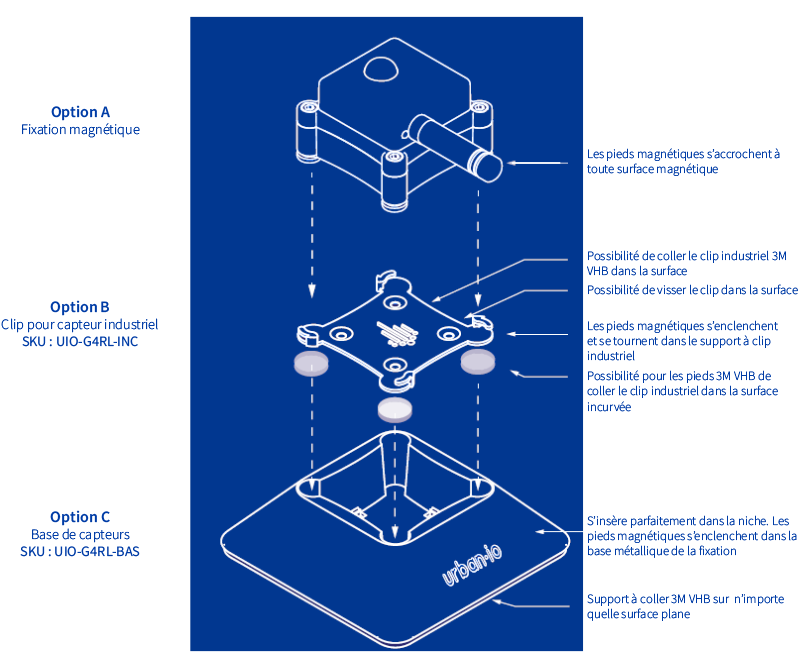

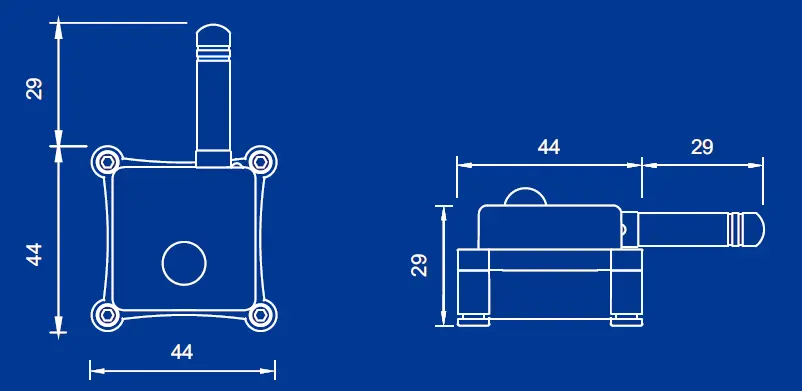

Mounting and dimensions :
Length : 73 mm (with antenna)
Height : 29 mm
Width : 44 mm
Weight : 85 g
Example Applications
Energy efficiency
Light detection
Lighting level
