Temperature Probe Sensor
The Urban.io Temperature Probe Sensor allows you to accurately monitor the temperature
of a surface or inside an air vent, cool room, freezer or other enclosed space.
The probe is a 10,000 CTN thermistor (Negative Temperature Sensor) at the end of a 900
mm cable.
This product is designed for usage with an Urban.io IoT Gateway. In ideal conditions with correct orientation of sensors and gateway antennas the following ranges can be achieved.
- Up to 5km line-of-sight where there are no obstructions between the gateway and the sensor and they are placed on the same horizontal plane.
- 500m non-line-of-sight in an enclosed space where there are one or more obstructions (objects, walls, buildings) between the gateway and the sensor and it is placed on the same horizontal plane.
This product is designed for application in normal indoor and certain outdoor environments. The gateway housing is IP65 rated and as such is designed to be water and dust resistant as well as generally resistant to direct sunlight. However the 240v Power Adapter is not rated for outdoor usage.
Urban.io proactively supports the interfacing of IoT sensor data with all industry leading Asset Management, Field Force and Work Management, Data Analytics and Machine Learning Platforms. We provide the following Public APIs as well as pre-built API Adapters for the following Enterprise IoT Systems :
- API publics : MQTT, Rest Web Services
- API adaptés : AWS IoT Core, IBM Watson IoT, Azure IoT Hub
Respond to emergencies
more quickly
Reduce the cost of
people on site
Cloud reporting platform
IoT API
Email/SMS alerts
Temperature Probe Sensor features :
General Sensor Features
Gateway to sensor network range
500m indoor
5km outdoor
Operating Temperature
-40°C to 85°C
Power Supply
3.0 V CR2477 coin cell battery (replaceable)
Battery life
2 years under normal operation
Reading frequency
1 Sample each 10 minute interval
Data transmission frequency
10 minute interval
Primary Sensing Element
A precise 10k NTC thermistor at the end of a 900mm cable.
Secondary Sensing Elements
Fault detection
(loss of sensing element)
IoT network connectivity
(Signal to Noise levels “SNR”)
IoT device battery Level
(% of remaining battery level)
Technical specifications :
Maximum resolution over measured electrical range | Plage de mesure | Calibration / Drift | Accuracy | Temperature range (limited by battery) | Enclosure rating |
4 095 detectable points | -40°C to 125°C | Aucun | +/- 0,1°C (0° and 60°C)outside core : +/- 2,3°C (0° and 60°C)Extremes : +/- 6°C (0° and 60°C) | -20°C to 85°C | IP67 |
Power specifications :
Supply Voltage | Current consumption — sleep mode | Current consumption — sensor active sampling mode | Current consumption — radio RX mode | Current consumption — radio TX mode (max) |
2,0 - 3,4 VDC | 9 uA | 12 uA (avg) | 25 mA for 0,5 seconds | 100 mA for 0,5 seconds |
915-925 MHz
Suitable for South East Asia, Australia, North/South America.
863-870 MHz
Suitable for Africa, Middle East, Europe.
779-787 MHz
Suitable for China.

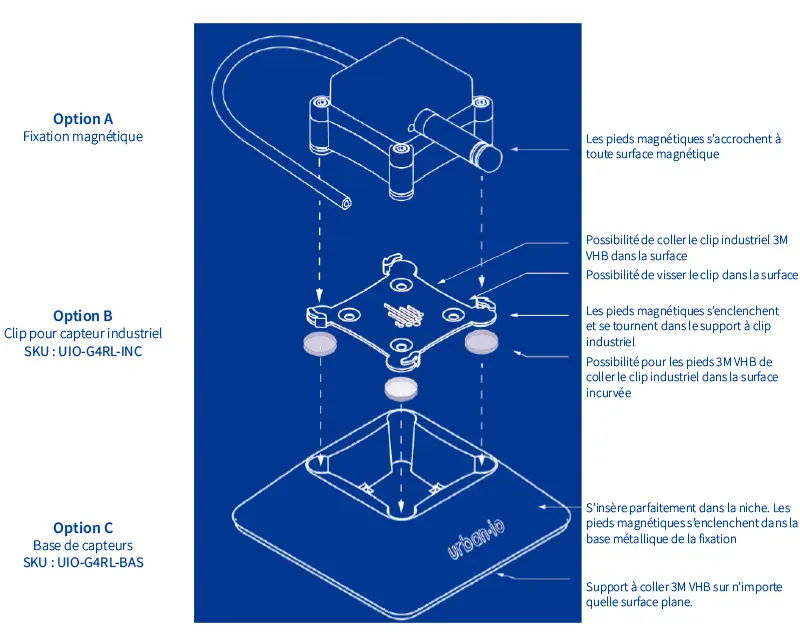

Mounting and dimensions :
Length : 73 mm (with antenna)
Height : 29 mm
Width : 44 mm
Weight : 85 g
Example Applications
Refrigerated food / vaccine
safety monitoring
Electrical transformer
monitoring
Legionella growth condition
audits in plumbing / pipework
