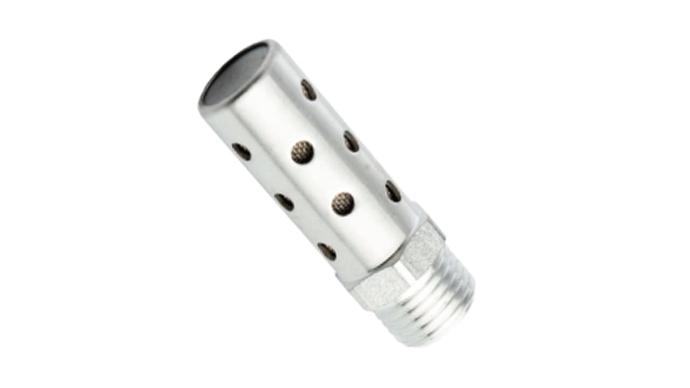

Uncloggable silencers
OI Technologies' uncloggable silencers are compact, durable, and made from corrosion-resistant metals.
The internal grids of the silencer vibrate under pressure, which helps to dislodge dirt.
Their compact design makes them perfectly suited for installation in confined spaces. Their construction allows them to withstand very harsh operating conditions.
They are designed with a precise distribution of openings around the perimeter, allowing for smooth dispersion of exhaust air over 360°. They provide a 70% reduction in exhaust noise.
They can be mounted on the exhaust ports of all your pneumatic equipment to maintain their performance over time.

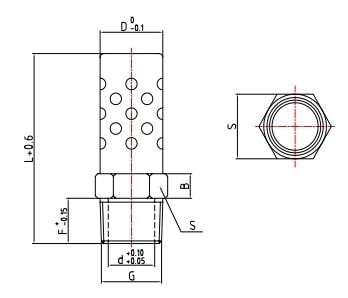

Technical specifications :
|
G*
|
F
|
D
|
d
|
L
|
B
|
S
|
| 1/8G | 6 | 10,4 | 6 | 34 | 4 | 11 |
| 1/4G | 8,5 | 13,4 | 8,5 | 42,5 | 4,5 | 14 |
| 3/8G | 9 | 16,5 | 12 | 49,5 | 5 | 17 |
| 1/2G | 11 | 21,5 | 15 | 65,2 | 5,5 | 22 |
| 3/4G | 12 | 26,2 | 20 | 74,3 | 6 | 27 |
| 1G | 15,5 | 32,3 | 26 | 91 | 7 | 33 |
| 1-1/4G | 15 | 42,3 | 32 | 106 | 7,5 | 43 |
| 1-1G | 15 | 50,3 | 40 | 116,5 | 8,5 | 51 |
| 2G | 16,5 | 59,3 | 50 | 130,5 | 9 | 60 |
*BSPP gas as standard / NPT and BSPT versions available upon request
