FIM1 WITH ICON-ANALOG, METRIC 1.00 EXT.

FIM1 WITH ICON-ANALOG, METRIC 2.00 EXT.

FI2 base connector

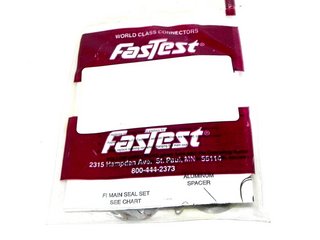

Main seal set sold separately
Aluminum and stainless-steel construction materials
1/8" BSPP media inlet port
1/8" BSPP pilot port.

FI2 base connector, extended 1.00" longer than standard.
Main seal set sold separately.
Aluminum andstainless-steel construction materials.
1/8" BSPP media inlet port
1/8" BSPP pilot port

FI3 base connector
Main seal set sold separately
Aluminum and stainless-steel construction materials
1/8" BSPP media inlet port
1/8" BSPP pilot port.

FIM3 ICON METRIC CONNECTOR

FIM3 ICON METRIC CONNECTOR

CONNECTOR METRIC 1.00 EXT

FI3 base connector
Main seal set sold separately
Aluminum and stainless-steel construction materials
1/8" BSPP media inlet port
1/8" BSPP pilot port.

CONNECTOR METRIC 2.00 EXT.

FIM5 base connector
Main seal set sold separately
Aluminum and stainless-steel construction materials
1/2" BSPP media inlet port
1/8" BSPP pilot port.

Kit including :
- 1x FIM5-0200
FI Internal pneumatic base tool only, no seal set. Use with seal sets from 1.339-1.693in(34-43mm) and respective thread sizes, 120psi(8.3bar) pressure, 1/2 BSPP Fem term, SS, Alum, Buna-N seals.
With an 2'' extension
- 1x FIS553
1 FI Seal Kit 1.575 to 1.693in (40.01-43mm) sealing range, Neoprene material.

CONNECTOR METRIC

REPAIR KIT

FI01 Repair kit, Actuator Assembly, Analog Module

FI01 Repair kit, Actuator Assembly, SSR Module

REPAIR KIT

FI1 & FI2 Repair Kit, Actuator Assembly, Analog Module

FI1 & FI2 Repair Kit, Actuator Assembly, SSR Module
